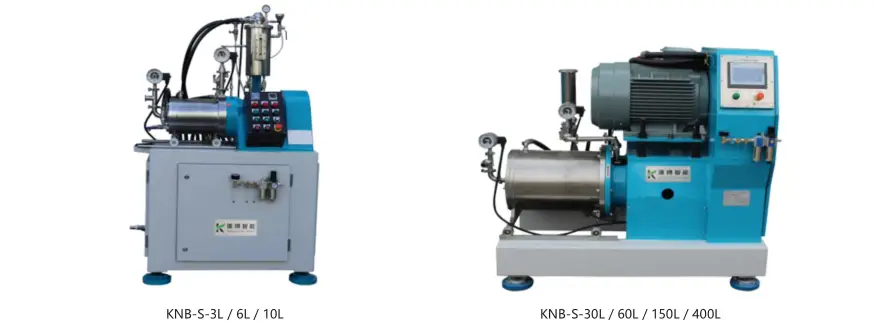

KNB-S Series iha-micron ileke Mill
ohun elo
Silicon carbon anode, awọn ohun elo cathode, ito didan (alumina, zirconia, cerium oxide, bbl), graphene, lẹẹ awọ, inki titẹ sita, awọn ohun elo itanna, ati bẹbẹ lọ.
Akopọ
Kini ọlọ ileke?
ọlọ ileke ti o tutu jẹ iru ẹrọ kan fun sisẹ-itanran ultra-fine ti awọn okele ni awọn olomi. Titẹwọle agbara ti o ga nipasẹ awọn media lilọ lati ṣẹda irẹrun ti o lagbara ati ipa ipa si pipinka, pinpin ati isokan awọn patikulu ninu slurry.
Kini awọn anfani?
Bii o ṣe le yan ọlọ ileke agitator, awọn aaye bọtini?
A. Oṣuwọn sisan ti ọlọ ileke pinnu iye akoko ti awọn patikulu duro ni agbegbe lilọ, eyiti o ni ipa lori didara ti awọn patikulu, iṣelọpọ ati pinpin iwọn patiku.
B. Iyara laini ti ẹrọ iyipo npinnu kikankikan ti agbara kainetik ti o gbe lọ si media lilọ eyiti o ni ipa lori ṣiṣe lilọ, itanran ti awọn patikulu ati sisọnu pipadanu ti media lilọ. 12-16 m/s jẹ iyara iṣiṣẹ gbogbogbo.
C. Yiyan iwọn media lilọ jẹ aaye bọtini, nigbagbogbo o jẹ awọn akoko 1000 ti iwọn patiku ibi-afẹde. Ni imọran, kere iwọn ila opin ti awọn ilẹkẹ jẹ, diẹ sii aaye olubasọrọ wa pẹlu awọn aṣeyọri iwọn patiku kekere. Sibẹsibẹ, O tun da lori ọpọlọpọ awọn ifosiwewe bii iwọn patiku akọkọ. A nilo lati yan awọn ilẹkẹ to tọ lati baamu awọn ibeere lilọ oriṣiriṣi.
D. Ni gbogbogbo, iwọn didun kikun media lilọ jẹ ti o ga julọ, lilọ daradara ga julọ. Ati awọn sakani ti nkún oṣuwọn jẹ ni ayika 75% -90% ni ibamu si awọn iki ti awọn ọja. Ti o ba ga julọ yoo fa idinamọ sieve ati iṣoro otutu otutu.
E. Olopobobo iwuwo ti lilọ media-ti o ga awọn olopobobo iwuwo yoo ṣẹda ni okun rirẹ-rẹlẹ ati ipa ipa ninu awọn ronu , dara lilọ ṣiṣe ti o jẹ.
F. Aafo ti iboju Iyapa jẹ igbagbogbo 1 / 2-1 / 4 ti iwọn ila opin media lilọ. Ti iwọn ibẹrẹ patiku ba tobi pupọ, o le dènà sieve, nitorinaa, a nilo lati gbero ilana lilọ ipele meji.

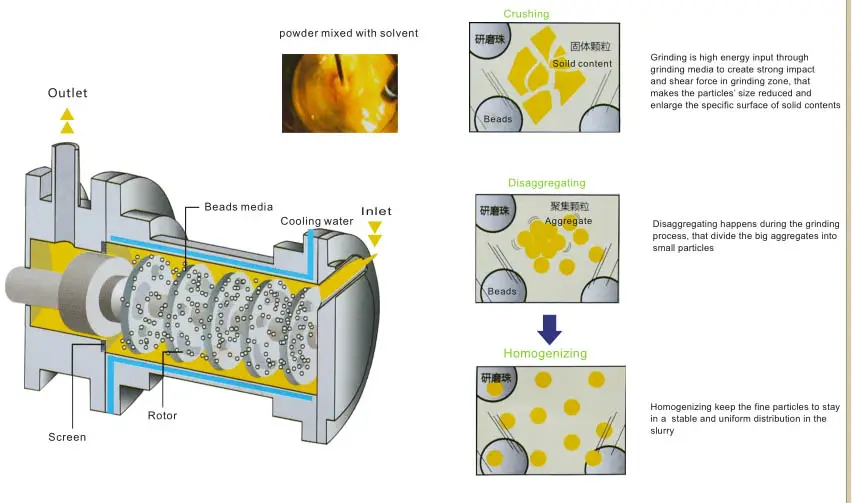

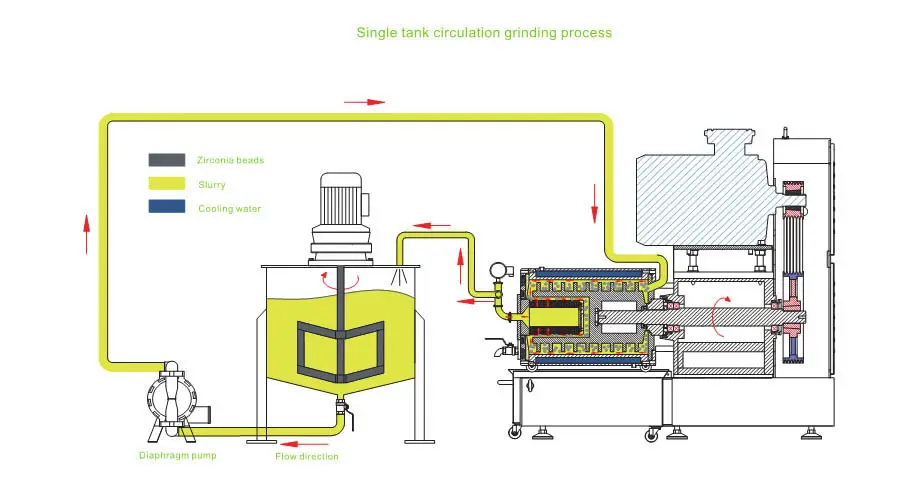

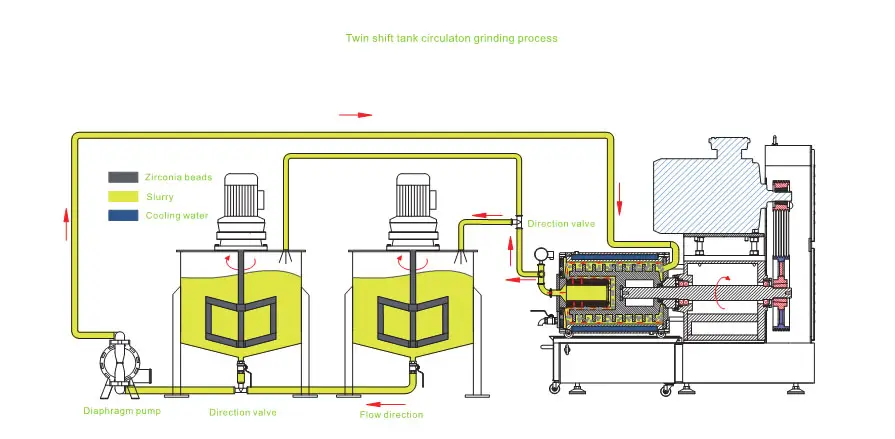

ṣiṣẹ Ilana
Afiwera laarin ileke ọlọ ati rogodo ọlọ
Ẹya-ara / Anfani
● Gbogbo eto ti a ṣakoso nipasẹ PLC ati kọnputa ile-iṣẹ, lati mọ iṣakoso ilana oye lati ifunni awọn ohun elo aise, iṣaju-dapọ, lilọ itanran ultra, sisẹ, yiyọ irin, gbigbẹ sokiri ati idii canning.
● Ifihan iboju ifọwọkan wiwo ati ṣe atẹle ipo ṣiṣe ti gbogbo eto.
● Ṣiṣeto ti o yatọ si ohunelo eto lilọ lati mọ ilana lilọ kiri ni irọrun.
● Fipamọ aifọwọyi ati itupalẹ data ti nṣiṣẹ
● Awọn sensọ to gaju ati awọn wiwọn ntọju iduroṣinṣin ati iṣẹ ailewu
● Lati ṣafipamọ iye owo iṣẹ, mu ilọsiwaju ṣiṣẹ ati ṣẹda awọn anfani diẹ sii si awọn onibara wa
Gbogbogbo elo
New energy_Lithium-ion batiri, lsilicon carbon, graphene, carbon nanotubes, alumina membrane slurry, PVDF membrane slurry, etc.
Powder_Alumina, Zirconia, Silicon Carbide, Titanium Dioxide, Calcium Carbonate, Awọn ohun elo Silicon, Cerium oxide, Zinc oxide, Barium Titanate, MLCC, Boron Nitride, Boron carbide, awọn ohun elo oofa, bbl
Kemikali_Automotive bo, kun aga, awọ anticorrosive, kun pataki, awọ lẹẹ, inki seramiki, UV inki, gilasi inki, aiṣedeede inki, Kosimetik, pharma, ounje, ogbin ati awọn miiran lati pese kan pipe ti ṣeto ti awọn solusan.

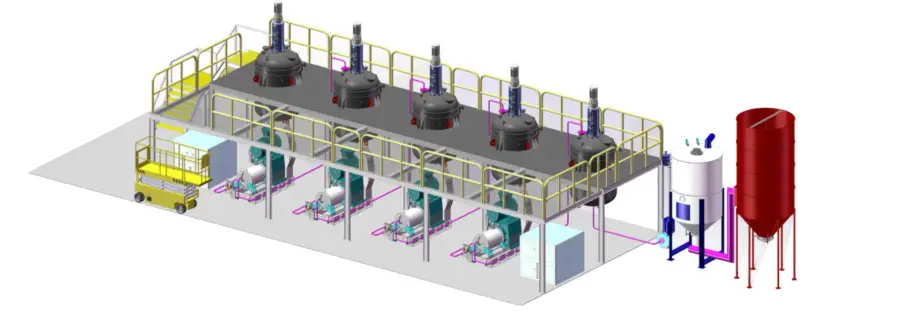

Laifọwọyi gbóògì ila Syeed
Awọn ẹya ara ẹrọ
● Adaṣe si 0.1-0.2mm lilọ meida, o dara fun lilọ ultrafine loke 100nm.
● Apẹrẹ rotor ni ibamu si awọn ẹrọ ito ati kikopa, aafo laarin ẹrọ iyipo ati ọkọ oju omi jẹ 7-12mm lati ṣe iṣeduro.
● Ga ṣiṣe ati dín patiku iwọn pinpin.
● Pẹlu eto Iyapa iboju iboju nla lati ṣe idiwọ iṣoro idinamọ.
● Apẹrẹ eto itutu ni ibamu si awọn ilana ti gbona sitẹrio helical ati awọn ẹrọ ito lati ṣe iṣeduro iṣakoso iwọn otutu to munadoko.
● To ti ni ilọsiwaju darí asiwaju ọna ẹrọ lati se awọn isonu ti jijo.
● Ipa ati iwọn otutu ohun elo aabo aabo laifọwọyi.
● Awọn ọja ayanmọ kan si ohun elo lati pade awọn ibeere mimu oriṣiriṣi.
● Iboju ifọwọkan tabi igbimọ iṣakoso PLC, rọrun fun iṣẹ.
Iwe Ilana
| awoṣe | Iwọn didun ti nṣiṣe lọwọ | Agbara (KW) |
Iwon Batch (L) |
Iwọn Media (Mm) |
àdánù (kgs) |
mefa (Mm) |
| KNB-S-0.3L | 0.3L | 2.2 | 0.3-5 | 0.1-2.0 | 60 | 500 * 450 * 650 |
| KNB-S-0.5L | 0.5L | 5.5 | 1.5-10 | 0.1-2.0 | 170 | 1020 * 780 * 840 |
| KNB-S-0.6L | 0.6L | 5.5 | 1.5-10 | 0.1-2.0 | 175 | 1020 * 780 * 840 |
| KNB-S-1L | 1L | 5.5 | 3-20 | 0.1-2.0 | 190 | 1020 * 780 * 840 |
| KNB-S-3L | 3L | 11 | 5-100 | 0.1-2.0 | 400 | 1300 * 900 * 1750 |
| KNB-S-6L | 6L | 18.5 | 20-200 | 0.1-2.0 | 550 | 1300 * 900 * 1750 |
| KNB-S-10L | 10L | 22 | 30-300 | 0.1-2.0 | 1300 | 1300 * 900 * 1750 |
| KNB-S-25L | 25L | 37 | 75-1000 | 0.1-2.0 | 1700 | 1900 * 1500 * 1700 |
| KNB-S-30L | 30L | 37/45 | 80-1000 | 0.1-2.0 | 1900 | 1900 * 1500 * 1700 |
| KNB-S-60L | 60L | 75/90 | 200-2000 | 0.1-2.0 | 3600 | 2100 * 1650 * 1900 |
| KNB-S-100L | 100L | 110 | 300-4000 | 0.1-2.0 | 5600 | 2400 * 1650 * 2200 |
| KNB-S-150L | 150L | 185 | 500-6000 | 0.1-2.0 | 6800 | 2600*165082300 |
| KNB-S-400L | 400L | 355 | 1000-10000 | 0.1-2.0 | 10500 | 4000 * 1900 * 2900 |
data imọ-
● Iwọn patiku akọkọ: 100um.
● Lẹhin ti ilẹ: 0.1- 10um.
● Solusan: ipilẹ omi, ipilẹ-epo.
● Igi:＜40000CPS
● Lilọ media iwọn: 0.1- 2.0mm

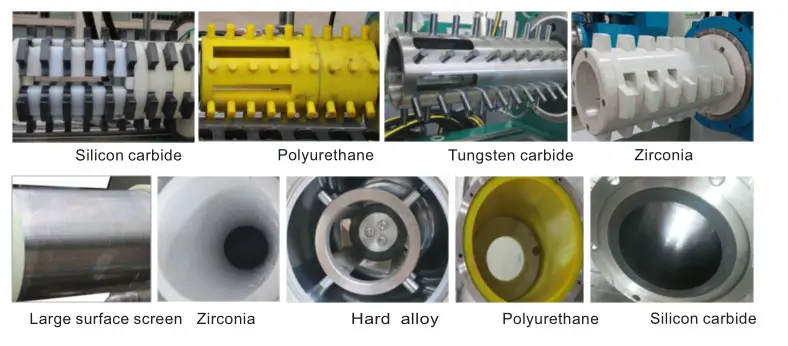

● Ohun elo Rotor: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
● Ohun elo inu inu: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
Ohun èlò Mactchable
| awoṣe | Iwọn didun ti nṣiṣe lọwọ | Agbara (KW) |
Iwon Batch (L) |
Iwọn Media (Mm) |
àdánù (kgs) |
mefa (Mm) |
| KNB-S-0.3L | 0.3L | 2.2 | 0.3-5 | 0.1-2.0 | 60 | 500 * 450 * 650 |
| KNB-S-0.5L | 0.5L | 5.5 | 1.5-10 | 0.1-2.0 | 170 | 1020 * 780 * 840 |
| KNB-S-0.6L | 0.6L | 5.5 | 1.5-10 | 0.1-2.0 | 175 | 1020 * 780 * 840 |
| KNB-S-1L | 1L | 5.5 | 3-20 | 0.1-2.0 | 190 | 1020 * 780 * 840 |
| KNB-S-3L | 3L | 11 | 5-100 | 0.1-2.0 | 400 | 1300 * 900 * 1750 |
| KNB-S-6L | 6L | 18.5 | 20-200 | 0.1-2.0 | 550 | 1300 * 900 * 1750 |
| KNB-S-10L | 10L | 22 | 30-300 | 0.1-2.0 | 1300 | 1300 * 900 * 1750 |
| KNB-S-25L | 25L | 37 | 75-1000 | 0.1-2.0 | 1700 | 1900 * 1500 * 1700 |
| KNB-S-30L | 30L | 37/45 | 80-1000 | 0.1-2.0 | 1900 | 1900 * 1500 * 1700 |
| KNB-S-60L | 60L | 75/90 | 200-2000 | 0.1-2.0 | 3600 | 2100 * 1650 * 1900 |
| KNB-S-100L | 100L | 110 | 300-4000 | 0.1-2.0 | 5600 | 2400 * 1650 * 2200 |
| KNB-S-150L | 150L | 185 | 500-6000 | 0.1-2.0 | 6800 | 2600*165082300 |
| KNB-S-400L | 400L | 355 | 1000-10000 | 0.1-2.0 | 10500 | 4000 * 1900 * 2900 |
data imọ-
● Iwọn patiku akọkọ: 100um.
● Lẹhin ti ilẹ: 0.1- 10um.
● Solusan: ipilẹ omi, ipilẹ-epo.
● Igi:＜40000CPS
● Lilọ media iwọn: 0.1- 2.0mm
● Ohun elo Rotor: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
● Ohun elo inu inu: Zirconia, Silicon carbide, Tungsten Carbide, PU, Alloyed steel.
